API Mocking with Prism

Recently my team has been working on API integration with a third party service. Unfortunately, for some reason we do not yet have access to a sandbox environment. Didn’t want to be blocked by this, we decided to build a local mocked API server.

Luckily for us, we were able to find an OpenAPI specification file for the API of this service and also discovered an excellent tool called Prism for creating a mock server out of that. This offers a very simple way to spin up a local mock server with all the endpoints mocked. And with minimal changes to the specification file, the ability to send back custom responses if necessary.

Setup

In this post, I’ll use the OpenAPI specification file of the PetStore API to demonstrate what Prism has to offer. Please download it as well if you’d like to follow along.

curl -o petstore.json https://raw.githubusercontent.com/api-evangelist/swagger/master/dev-api-openapi.json

Note: The OpenAPI specification can be in JSON or YAML formats, but I’m be using JSON in this post.

You’ll also need to install the prism npm package by

npm install -g @stoplight/prism-cli

And then run

prism mock petstore.json

If everything goes well, your local mock server for the PetStore API should be running .

Add Example Responses

Having the server running is great, but at this point it would only return empty responses because no example response has been defined in the JSON file. To add example responses for various HTTP status codes, you’ll need to edit the petstore.json file.

For instance, say we’d like the /pet/:petId endpoint to return the following example response for a successful GET request:

{
  "id": 3,
  "name": "Kitten",
  "status": "available"
}

What we need to do is to add an examples key under paths -> /pet/{petId} -> get -> responses -> 200 -> content -> application/json with the following value:

  "examples": {
    "success": {
      "value": {
        "id": 3,
        "name": "Kitten",
        "status": "available"
      }
    }
  }

For failure cases, say we want to add a 400 example response for the same endpoint, it would involve adding the following under paths -> /pet/{petId} -> get -> responses -> 200 -> content -> application/json:

  "examples": {
    "failure": {
      "value": {
        "message": "Bad Request"
      }
    }
  }

Of course there are a lot more you could do with the specification file. I’m just scratching the surface here. Please refer to the Responses Object Example section in the OpenAPI Specification for more information.

Send Requests

Now that we have a local mock server with a butch of endpoints, and the capability of returning desired example responses, it’s time to send some sample requests. Surely creating all the requests manually in your favorite HTTP client would work, but if you use Postman, there is a better alternative. Postman can directly import the OpenAPI specification file and create a new collection with requests for each endpoint. After that you might still need to fill in some variables like baseUrl for all endpoints or petId for the /pet/:petId endpoint. But being able to import from the OpenAPI specification file still saves a lot of effort.

Please refer to the screenshots below:

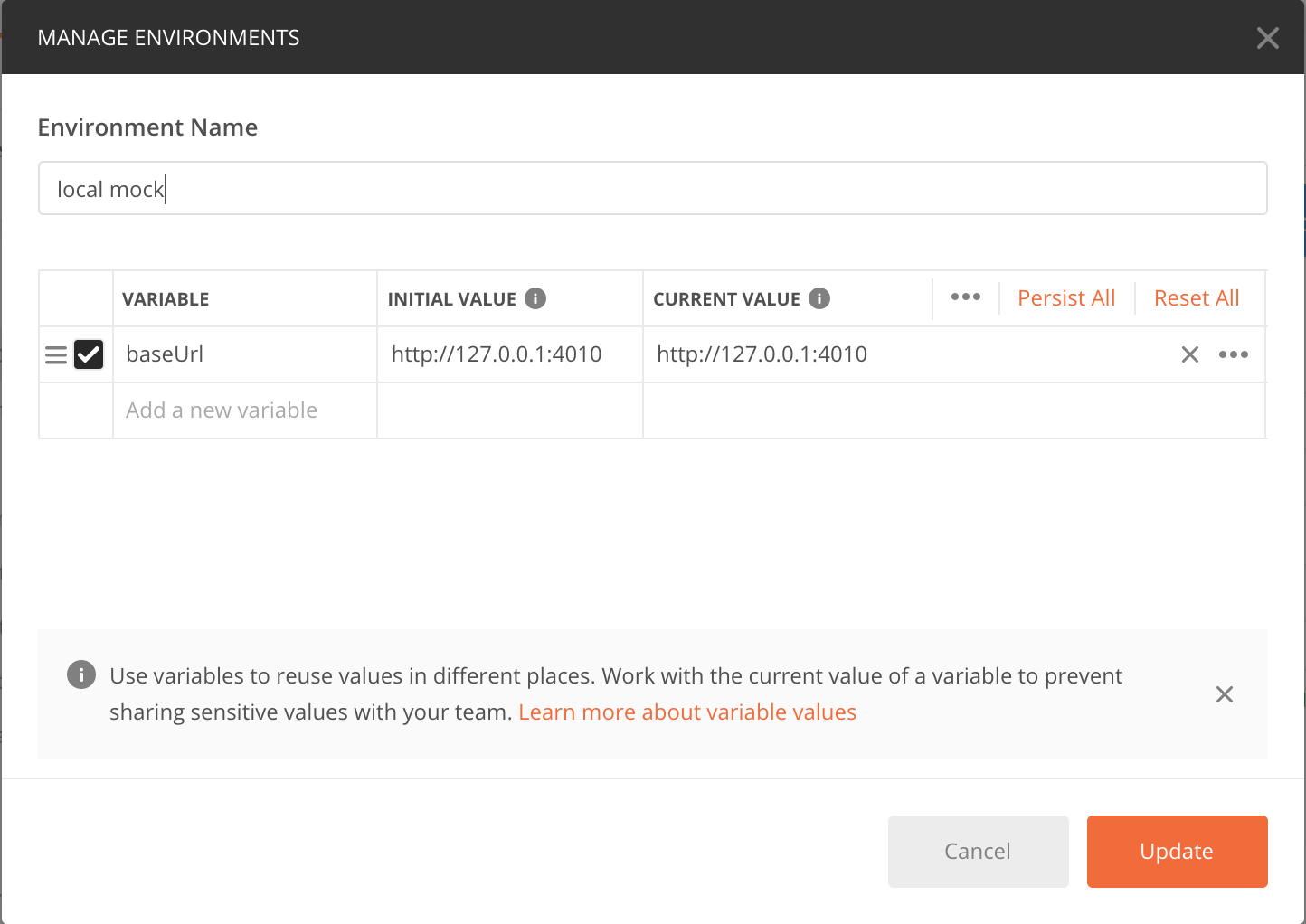

• Postman Environment Configuration

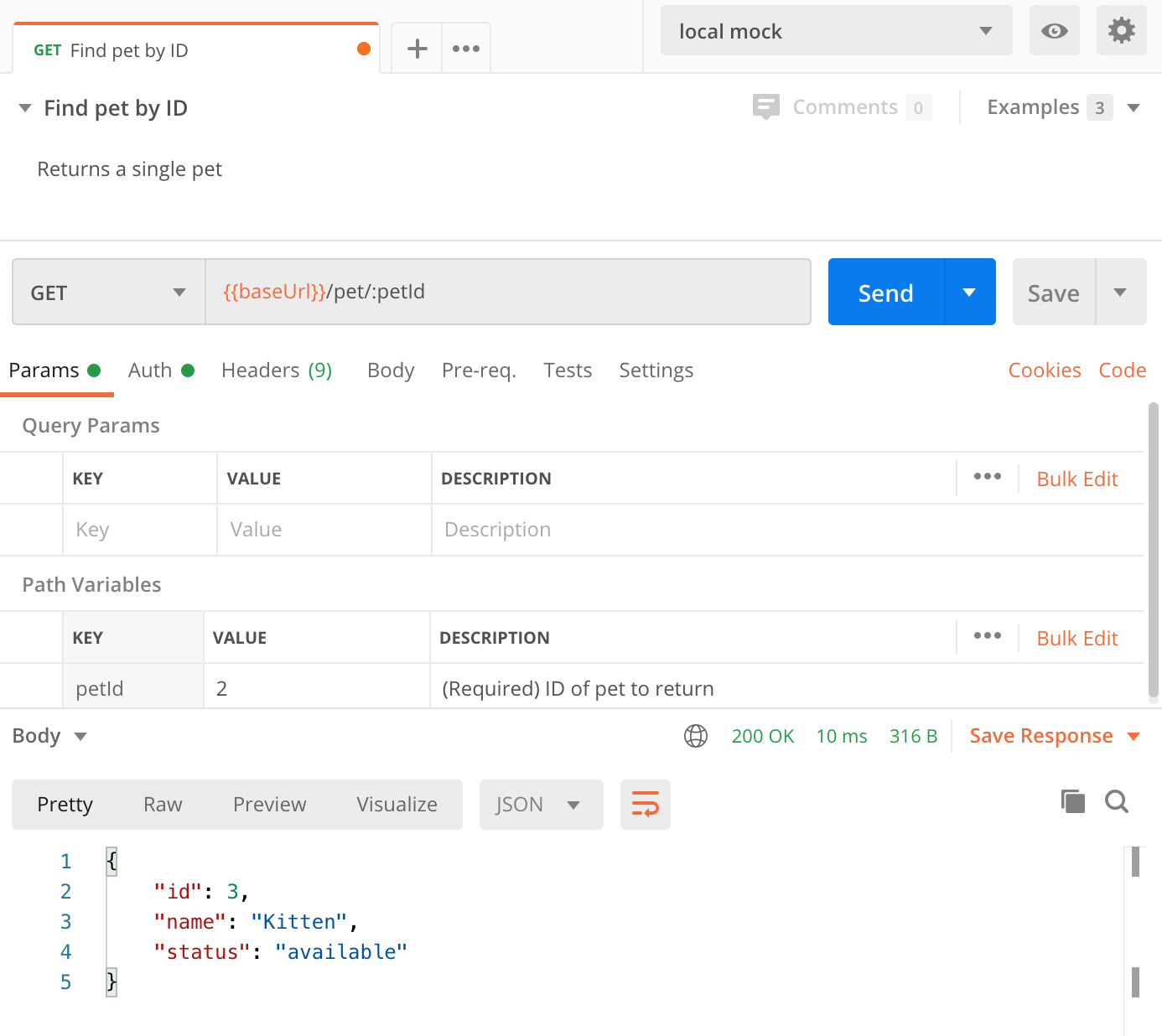

• get /pet/:petId/ endpoint

Warning before Celebration

Being able to create a local mock server and to send sample requests to it are definitely useful in some scenarios. Maybe you (like us) want to start the development work before having access to the sandbox environment; or maybe you would like some confirmations before sending out requests to the real API server. But regardless, please always bear in mind that no matter how well it worked with the mock server, this does NOT replace actually integrating with the API server and verifying things actually work. The work is far from done with requests just hitting a local mock server. Again, always test with the real API server and make sure everything works as expected.

Summary

As you can see, if a third party service offer an OpenAPI specification file, it is reasonably simple to get a local mock server up and running with Prism for their API. It is also very approachable to add example responses for the mocked endpoints by editing the specification file. Since Postman can import an OpenAPI specification file into a Postman collection, sending sample requests to the mock server is super easy as well.
